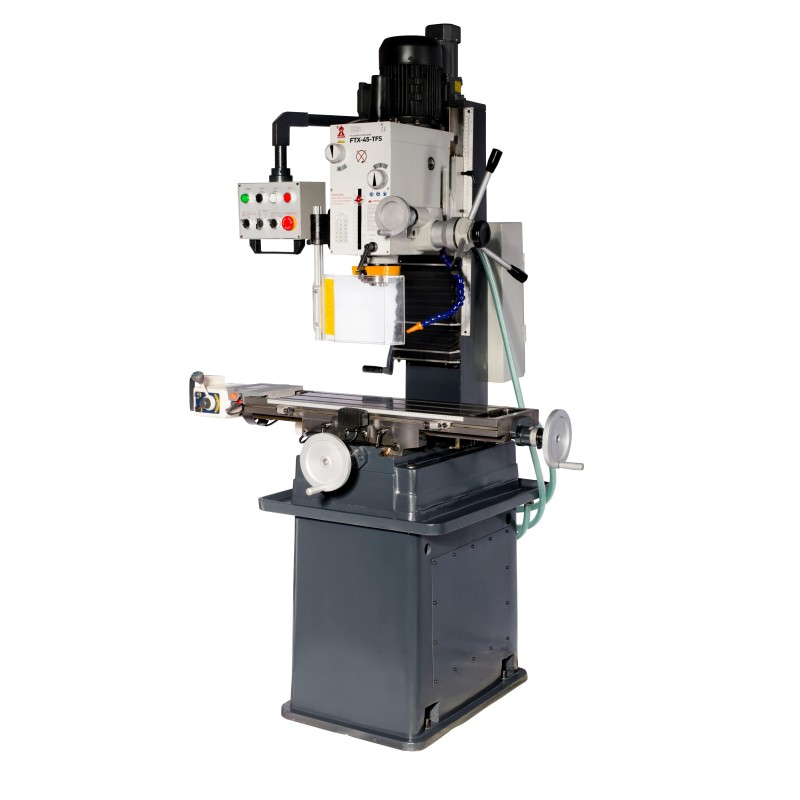

Ftx-45-TFS 400V / F3 Milling Drill
DESCRIPCIÓN
Its large square smelter pedestal, ensures maximum rigidity. Articulated arm control box. The reduced tolerance of the head gears ensures a silent operation. Equipped with low voltage security circuit. Cover protector with disconnect. Correct elevation of the head by the guides with a Milano tail rectified. Elevation of the manual or motorized head. Table lock on X-Y axes. Against tapered cadas on axes X, Y, and Z. Huste of large diameter with conical bearings. Zipper and pinion calibrated for a precise advance. Spindle depth lock. Table with automatic range of variable speed. Refrigeration system. Inclination head + -90º. Machines manufactured according to EC standards.
DESCARGAR FICHA TÉCNICA
441355000.pdf
Mi Descargar ficha técnica del producto 441355000
* Impuestos y transportes excluidos
| Feed | 400v / f3 |
|---|---|
| Power | 1.1 - 1.5 kW-HP |
| Transmission | Gears |
| Number of speeds | 12 |
| Speed | 75 - 3200 m.p.m. |
| Maximum capacity drill | 40 mm. |
| Tilt of the head | - |
| Threading | - |
| Diameter column | - mm. |
| Maximum diameter of vertical milling | 32 mm. |
| Maximum diameter of horizontal milling | 80 mm. |
| Distance Caker-column | 260 mm. |
| Max. Distance Cake-up-table | 470 mm. |
| Hausyl advance | - mm./r |
| Cone morse | Mt4 |
| Depth drill | 120 mm. |
| Longitudinal tour (x) | 560 mm. |
| Transversal tour (Y) | 230 mm. |
| Vertical travel (Z) | 300 mm. |
| Slot size in T | 3x14 mm. |
| Total height | 1750 mm. |
| Table | 800x240 mm. |
| Base dimension | - mm. |
| Net / crude weight | 580/640 kg. |
| Dimensions | 1020x940x2100 mm. |
