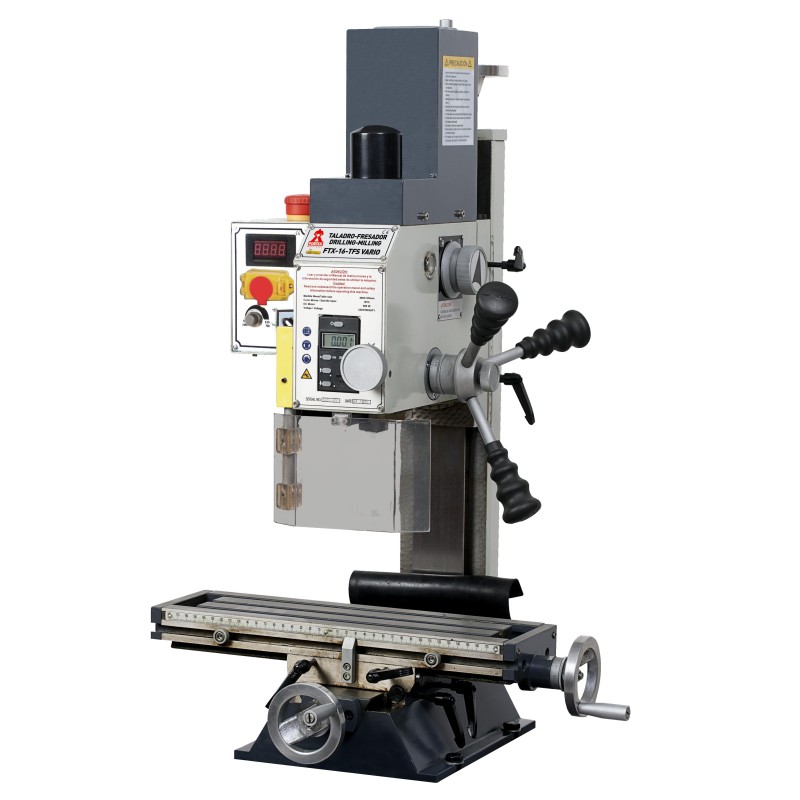

Drill Milling FTX-16-TFS Vario 230V / F1 0,75KW (BL)
DESCRIPCIÓN
The column with a Milan tail, ensures the correct position of the head. Precision spindle with conical bearings. Cakes adjust to the guides. Reversible motor (left-right turn). Better contact between pinion and zip that offers precise machining. Block in head, column and guides. Inclination head + -90º. Digital depth display. Machines manufactured according to EC standards.
DESCARGAR FICHA TÉCNICA
441453000.pdf
Mi Descargar ficha técnica del producto 441453000
* Impuestos y transportes excluidos
| Feed | 230v / f1 |
|---|---|
| Power | 0.75 - 1 kW-HP |
| Transmission | Gears |
| Number of speeds | Variable |
| Speed | 50 - 2250 m.p.m. |
| Maximum capacity drill | 16 - 31.5 mm. |
| Tilt of the head | - |
| Threading | - |
| Diameter column | - mm. |
| Maximum diameter of vertical milling | 16 mm. |
| Maximum diameter of horizontal milling | 50 mm. |
| Distance Caker-column | 175 mm. |
| Max. Distance Cake-up-table | 275 mm. |
| Hausyl advance | - mm./r |
| Cone morse | Mt2 |
| Depth drill | 50 mm. |
| Longitudinal tour (x) | 240 mm. |
| Transversal tour (Y) | 160 mm. |
| Vertical travel (Z) | 200 mm. |
| Slot size in T | 3x10 mm. |
| Total height | - mm. |
| Table | 400x120 mm. |
| Base dimension | - mm. |
| Net / crude weight | 146/160 kg. |
| Dimensions | 510x480x750 mm. |
