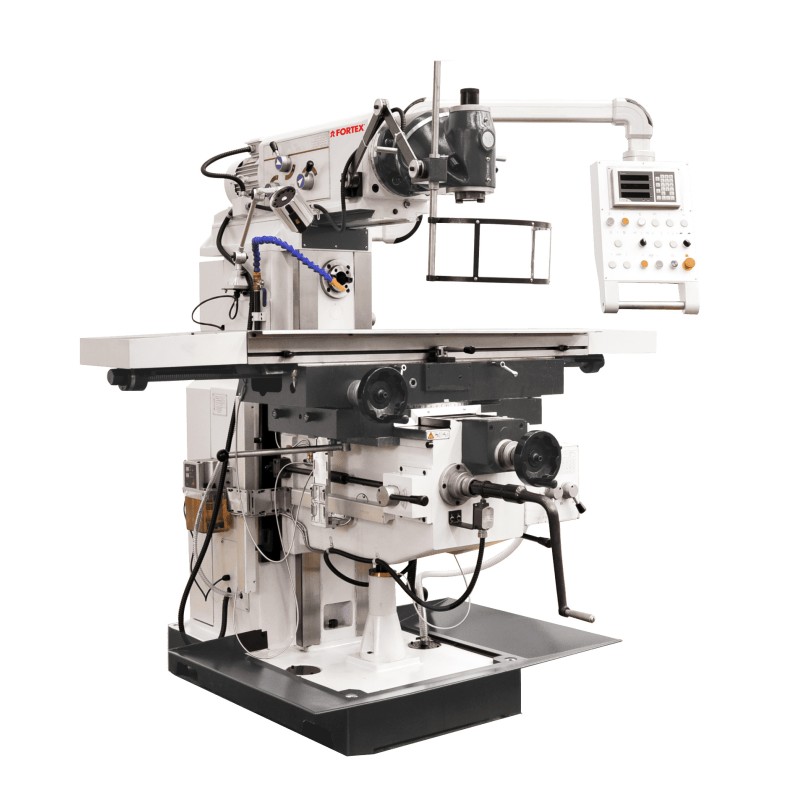

Universal Ftx-130-FC * 400V-F3
DESCRIPCIÓN
High performance milling machine designed for precision work in industrial environments. Its robust construction and quality components guarantee reliability, versatility and precision in each operation.
Gear transmission, which provides greater power, stability and durability in high effort jobs.
Robust design with front attack, Ideal for demanding machining and continuous operation.
High precision coordinate table, which allows an exact positioning of the piece for fine and repetitive finishes.
Column with Milan tail guides, Ensuring structural rigidity and a soft movement of the head.
Adjustable milling head, adaptable to different angles and types of machining.
Automatic advances in the X, Y and Z axes included as standard, for a more efficient, accurate and less dependent operation of the operator.
Manufactured according to EC standards, complying with European safety and industrial quality standards.
DESCARGAR FICHA TÉCNICA
Mi Descargar ficha técnica del producto 441335000
* Impuestos y transportes excluidos
| Feed | 400v / f3 |
|---|---|
| Power | 3 - 4 kW-HP |
| Transmission | Gears |
| Number of speeds | 11 (V) - 12 (H) |
| Speed | 45 - 1660 (V) / 38 - 1300 (H) m.p.m. |
| Coordinator X/Y/Z | IF |
| Table forward (X, Y, Z) | 22 - 420/8 (X,Y), 422 (Z) mm/min |
| Fast forward (X, Y, Z) | 1200 (X,Y), 422 (Z) mm/min |
| Maximum capacity drill | 13 - 28 mm. |
| Tilt of the head | 360º |
| Load capacity | 250 (mesa) Kg. |
| Maximum diameter of vertical milling | 25 mm. |
| Maximum diameter of horizontal milling | 125 mm. |
| Distance Spin-column | 200 - 760 (V), 30 - 450 (H) mm. |
| Distance spindle-table | 200 - 640 (V) mm. |
| Cone morse | Iso40 |
| Longitudinal tour (x) | 1000 mm. |
| Transversal tour (Y) | 300 mm. |
| Vertical travel (Z) | 440 mm. |
| Slot size in T | 5x14 mm. |
| Total height | - mm. |
| Table | 1320x320 mm. |
| Net / crude weight | 2100 / 2300 Kg. |
| Dimensions | 2020X1710X2000 mm. |
