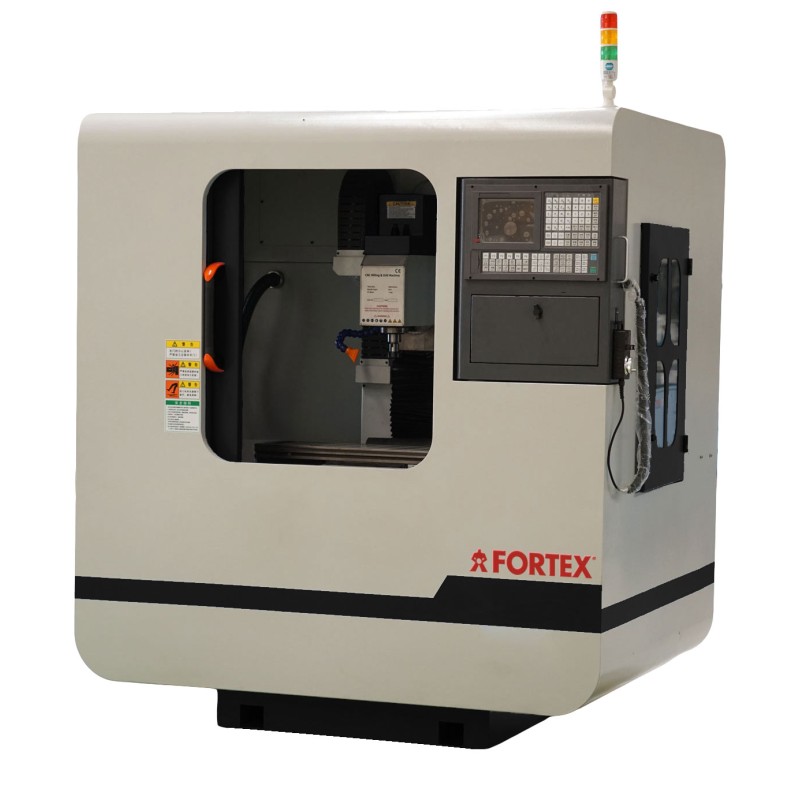

CNC Milling machine FTX-30-FCNC * 400V-F3

Referencia 430032000 Category Universal milling machine Brand FORTEX

DESCRIPCIÓN

Vertical machining center Type milling machine, equipped with 2,2-3 kW engine. Ideal for precision work in metal and other materials. It offers high rigidity, efficiency and versatility in industrial processes.


DESCARGAR FICHA TÉCNICA

430032000.pdf

Mi Descargar ficha técnica del producto 430032000

* Impuestos y transportes excluidos

Feed400v / f3
Power2,2 - 3 kW-HP
Table840x210 mm.
SpindleBt30
Maximum capacity drill32 mm.
Spindle70 mm.
Maximum diameter of vertical milling20 mm.
Maximum diameter of horizontal milling76 mm.
Slot size in T3/14 mm.
Distance spindle-table400 mm.
Distance Caker-column240 mm.
Longitudinal tour (x)420 mm.
Transversal tour (Y)180 mm.
Vertical travel (Z)250 mm.
Fast forward X / Y / Z6/6/6 m / min.
X / Y / Z advance speed2000 mm / min.
SERVO X / Y / Z motor power0.75 - 1 kW / HP
Spindle6000 R / min.
Precision positioning± 0.01 mm.
Accuracy repositioning± 0.01 mm.
Net / crude weight790/860 kg.
Dimensions2000x1450x2300 mm.
