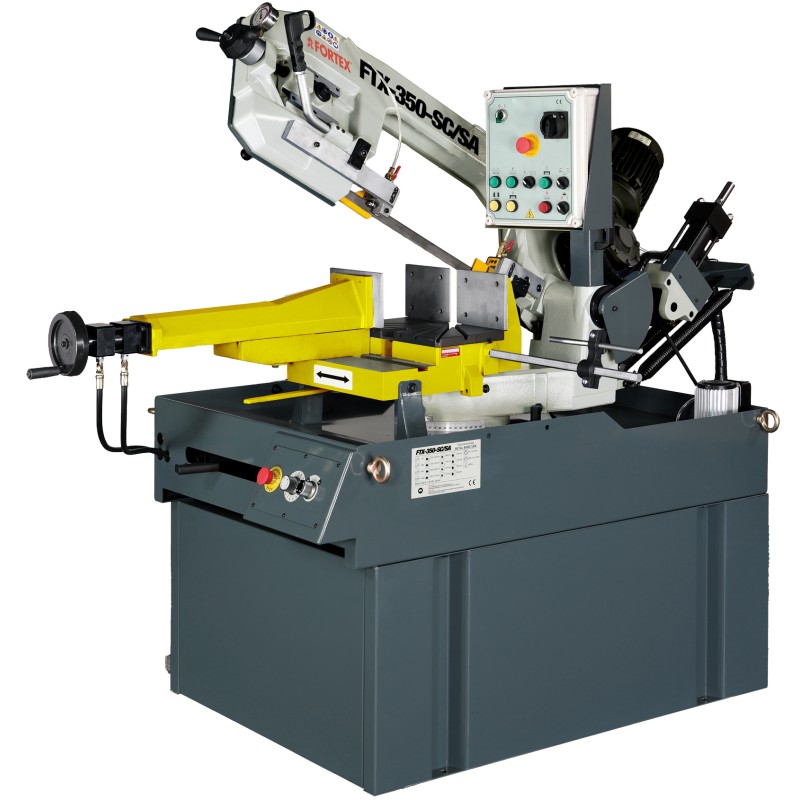

Ribbon saw FTX-350-SC / SA * 380V / 50Hz / F3
DESCRIPCIÓN
- Rotating head of 0-60º, 45º ±.
- Hydraulic jaw.
- Descent by hydraulic piston.
- Downhill and climb of the automatic head.
- Ease of adjusting the cut angle.
- Automatic stop at the end of the cut.
- Carbide sheet guides resting on ball bearings.
- Emergency switch
- Cover opening safety switch.
- Leaf tension manometer.
- Machines manufactured according to EC standards.
DESCARGAR FICHA TÉCNICA
421035000.pdf
Mi Descargar ficha técnica del producto 421035000
* Impuestos y transportes excluidos
| Feed | 400v / f3 |
|---|---|
| Power | 1,9 -2,5 kW-HP |
| Speed | 36 - 72 m.p.m. |
| 90º Cut Capacity (Round, Rectangular, Square) | 270 / 230x330 / 270x270 mm. |
| 45º Corte Capacity (Round, Rectangular, Square) | 230 / 210x220 / 220x220 mm. |
| 60º Corte Capacity (Round, Rectangular, Square) | 140 / 140x140 / 140x140 mm. |
| Capacity cut 45º left (round, rectangular, square) | 220 / 140x200 / 180x180 mm. |
| Opening gag | 85 mm. |
| Sierra development | 2925x0.9x27 mm. |
| Net / crude weight | 600/650 kg. |
| Dimensions | 1930x970x1120 mm. |
