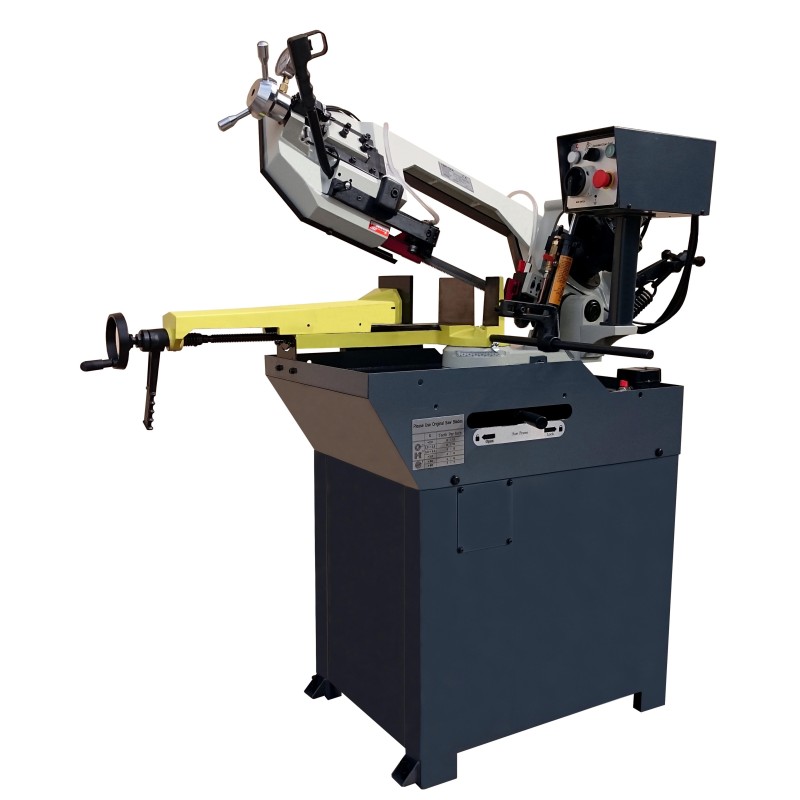

Ribbon saw BF-270-SC TF * 400V / 50HZ / F3
DESCRIPCIÓN
Jaw. Rotating head 0-60º. Refrigeration pump with double circuit. Drop of the head with manual or hydraulic descent selector. Ease of adjusting the cut angle. Automatic stop at the end of the cut. Leaf guide resting on double ball bearings train. Emergency switch Cover opening safety switch. Safety switch of sheet tension. Leaf tension manometer. Machines manufactured according to EC standards.
DESCARGAR FICHA TÉCNICA
421085000.pdf
Mi Descargar ficha técnica del producto 421085000
* Impuestos y transportes excluidos
| Feed | 400v / f3 |
|---|---|
| Power | 1.1 - 1.5 kW-HP |
| Speed | 36 - 72 m.p.m. |
| 90º Cut Capacity (Round, Rectangular, Square) | 227 / 260x200 / 200x200 mm. |
| 45º Corte Capacity (Round, Rectangular, Square) | 150 / 150x125 / 125x125 mm. |
| 60º Corte Capacity (Round, Rectangular, Square) | 90 / 85x85 / 85x85 mm. |
| Capacity cut 45º left (round, rectangular, square) | - mm. |
| Opening gag | 260 mm. |
| Sierra development | 2455x0.9x27 mm. |
| Net / crude weight | 190/263 kg. |
| Dimensions | 1460x720x1100 mm. |
