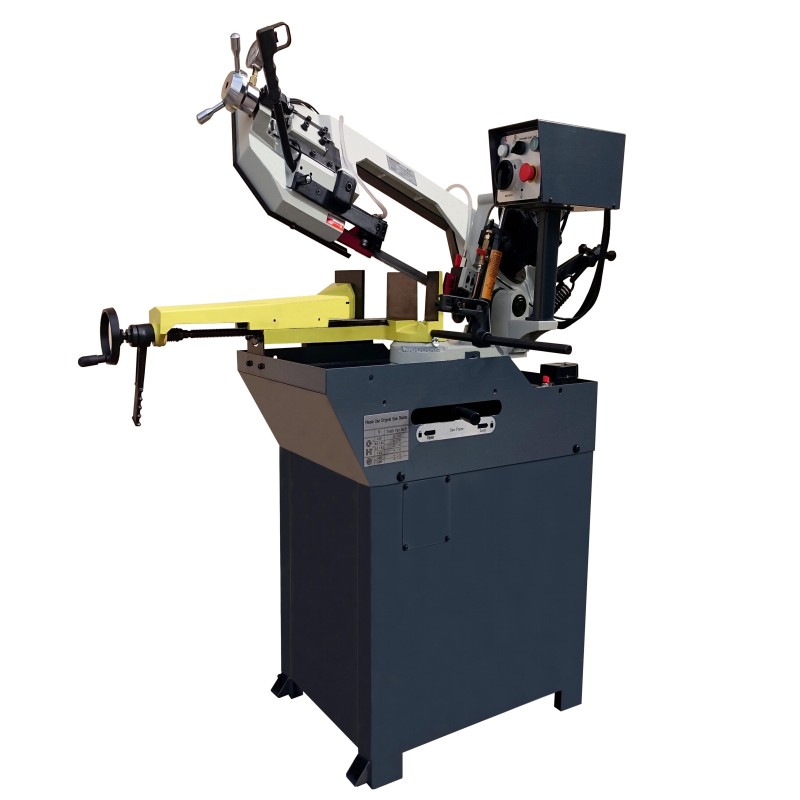

Ribbon saw BF-200-SC M * 230V / 50Hz / F1
DESCRIPCIÓN
Jaw. Rotating head of 0 to 60º. Refrigeration pump with double circuit. Drop of the head with manual or hydraulic descent selector. Ease of adjusting the cut angle. Automatic stop at the end of the cut. Leaf guide resting on double ball bearings train. Emergency switch Cover opening safety switch. Safety switch of sheet tension. Machines manufactured according to EC standards.
DESCARGAR FICHA TÉCNICA
421234000.pdf
Mi Descargar ficha técnica del producto 421234000
* Impuestos y transportes excluidos
| Feed | 230v / f1 |
|---|---|
| Power | 1.1 - 1.5 kW-HP |
| Speed | 30 - 80 Vario m.p.m. |
| 90º Cut Capacity (Round, Rectangular, Square) | 170 / 200x170 / 170x170 mm. |
| 45º Corte Capacity (Round, Rectangular, Square) | 120 / 110x110 / 110x110 mm. |
| 60º Corte Capacity (Round, Rectangular, Square) | 70 / 60x60 / 60x60 mm. |
| Capacity cut 45º left (round, rectangular, square) | - mm. |
| Opening gag | 200 mm. |
| Sierra development | 2085x0.9x20 mm. |
| Net / crude weight | 170/202 kg. |
| Dimensions | 1250x720x1000 mm. |
