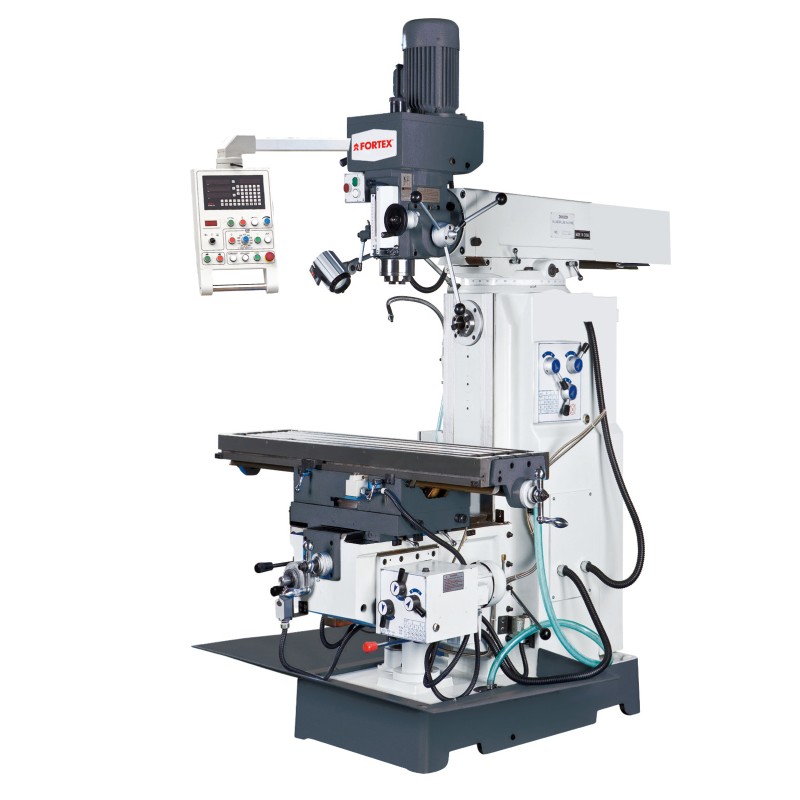

FTX-85-FC Milling machine Visualizer * 400V / F3
* Impuestos y transportes excluidos
| Feed | 400v / f3 |
|---|---|
| Power | 2,2 - 3 kW-HP |
| Transmission | Gears |
| Number of speeds | 8 (V) - 12 (h) |
| Speed | 90 - 2000 (V) / 60 - 1350 (H) m.p.m. |
| Coordinator X/Y/Z | IF |
| Maximum capacity drill | 50 mm. |
| Maximum diameter of vertical milling | 25 mm. |
| Maximum diameter of horizontal milling | 100 mm. |
| Distance Spin-column | 220 - 560 mm. |
| Distance spindle-table | 95 - 495 mm. |
| Depth drill | 120 mm. |
| Cone morse | Iso40 |
| Longitudinal tour (x) | 720 mm. |
| Transversal tour (Y) | 270 mm. |
| Vertical travel (Z) | 330 mm. |
| Slot size in T | 5x14 mm. |
| Total height | - mm. |
| Table | 1270x320 mm. |
| Net / crude weight | 1650 kg. |
| Dimensions | 1680x1640x2200 mm. |
