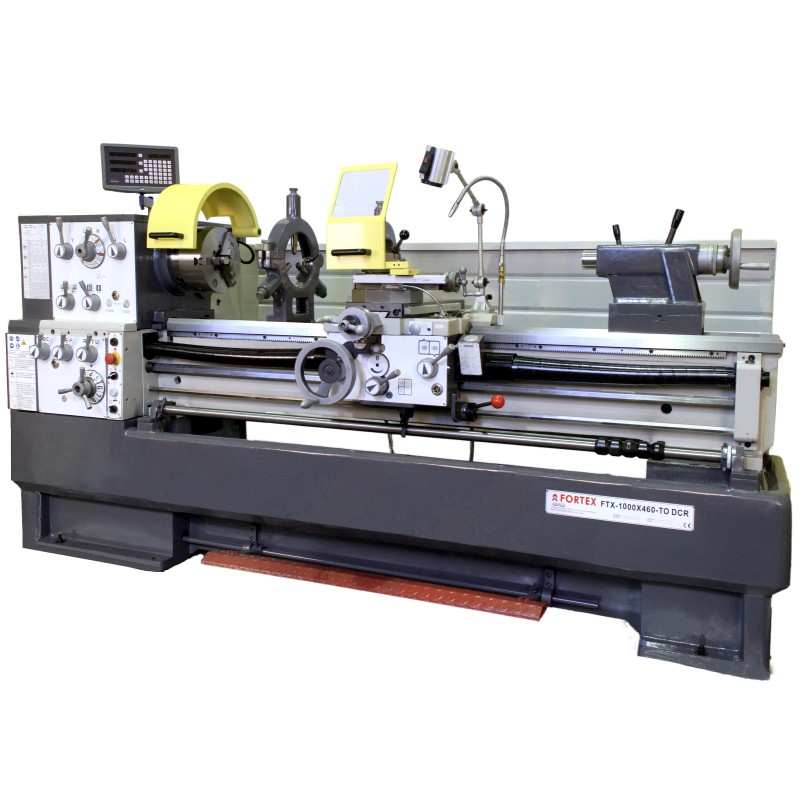

Lathe FTX-1000x460-to DCR 400 / F3 7.5hp + Dro + TCRE
DESCRIPTION
Lathe to work metals, professional use, robust design with laminated and rectified prismatic guides. With a shaft of guide for automatic advances. Stopper microswitch by opening pulley cap or plate protector. Clipping plate protector and turret. Emergency stop Foot brake. Tope revolver that for the machine automatically to a certain length of the piece. Dial Thread Indicator. Race stopper longitudinal carriage stop. Machines manufactured according to EC standards.
DESCARGAR FICHA TÉCNICA
441030100.pdf
Mi Descargar ficha técnica del producto 441030100
* Taxes and transport excluded
| X / Y coordinate display | IF |
|---|---|
| Feed | 400v / f3 |
| Power | 5.5 - 7.5 kW-HP |
| Change speeds | GEARS |
| Diameter on bench | 460 mm. |
| Diameter over neckline | 690 mm. |
| Diameter on car | 274 mm. |
| Bench width | 300 mm. |
| Interior diameter spindle | 82 mm. |
| Distance between points | 1000 mm. |
| Cone | Mt7 |
| Cone counterpoint | Mt4 |
| Diameter counterpoint | 60 mm. |
| Journey | 120 mm. |
| Number of speeds | 12 |
| Range speeds | 125 - 2000 r.p.m. |
| Longitude progress rank | 0.031 - 1.7 mm / rev. |
| Transverse progress rank | 0,014 - 0.784 mm / rev. |
| A. Languid Longitance Intermediate car | - m / min. |
| A.Rapid Transversal Intermediate car | - m / min. |
| Range Metric Steps | 47 Types / 0.2 - 14 mm. |
| Range inch steps | 50 Types / 112 - 4 TPI |
| Diametral Steps Range | 50 Types / 4 - 112 d.p. |
| Range Modular Steps | 34 types / 0.1 - 7 m.p. |
| Net / crude weight | 1695/1960 kg. |
| Dimensions | 2250x1120x1620 mm. |
