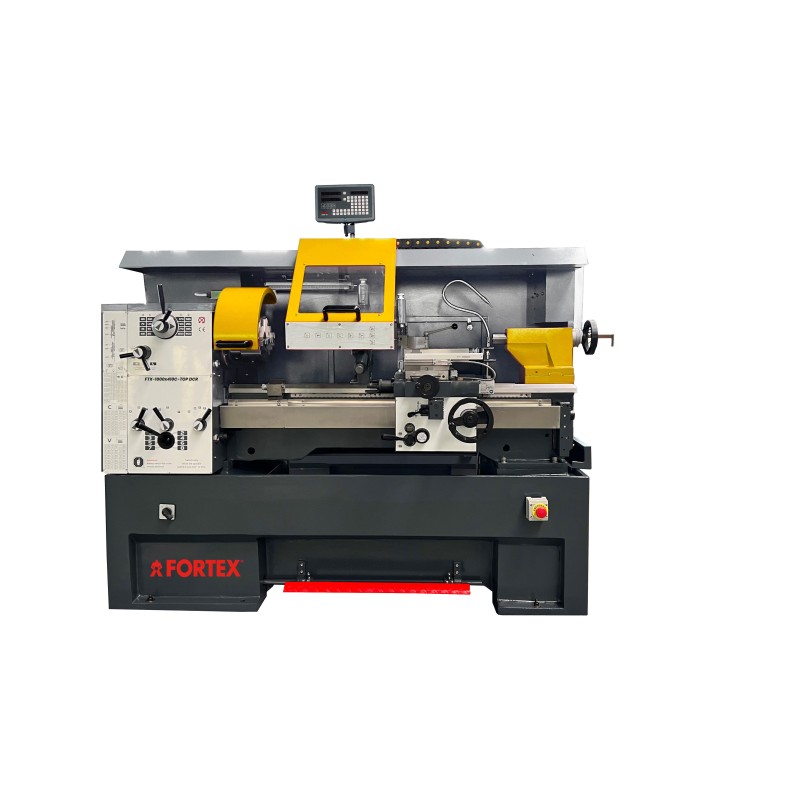

FTX-1000x410C-Top DCR 400V / F3 4,5hp + Dro + TCRE
DESCRIPCIÓN
Professional lathe, robust design with laminated and rectified prismatic guides.
With a shaft of guide for automatic advances.
Stopper microswitch by opening pulley cap or plate protector.
Clipping plate protector and turret.
Emergency stop
Accessories included:
3 claw plate (200 mm)
4-claw plate (320 mm)
Front plate (400 mm)
Luneta and follow-up support
Foot brake
Work lamp
Refrigeration system
Stainless steel cover for spindle
Total cover
Splash guard
Support and oil tray
Thread
Carrier
Main switch
Toolkit
DESCARGAR FICHA TÉCNICA
441034000.pdf
Mi Descargar ficha técnica del producto 441034000
* Impuestos y transportes excluidos
| X / Y coordinate display | IF |
|---|---|
| Feed | 400v / f3 |
| Power | 2,2/3,3 - 3/4,5 Kw-Hp |
| Change speeds | GEARS |
| Diameter on bench | 410 mm. |
| Diameter over neckline | 580 mm. |
| Diameter on car | 250 mm. |
| Interior diameter spindle | 52 mm. |
| Distance between points | 1000 mm. |
| Cone | Mt6 |
| Cone counterpoint | Mt4 |
| Diameter counterpoint | 50 mm. |
| Journey | 120 mm. |
| Number of speeds | 18 |
| Range speeds | 45 - 1800 r.p.m. |
| Longitude progress rank | 0.05 - 1.7 mm / rev. |
| Transverse progress rank | 0,029 - 1,019 mm/rev. |
| A. Languid Longitance Intermediate car | - m / min. |
| A.Rapid Transversal Intermediate car | - m / min. |
| Range Metric Steps | 42 TIPOS / 0,2 - 14 mm. |
| Range inch steps | 45 TIPOS / 2 - 72 tpi |
| Diametral Steps Range | 18 TIPOS /0,3 - 3,5 d.p. |
| Range Modular Steps | 21 TIPOS / 8 - 44 m.p. |
| Net / crude weight | 1160 / 1310 Kg. |
| Dimensions | 1940X915X1550 mm. |
