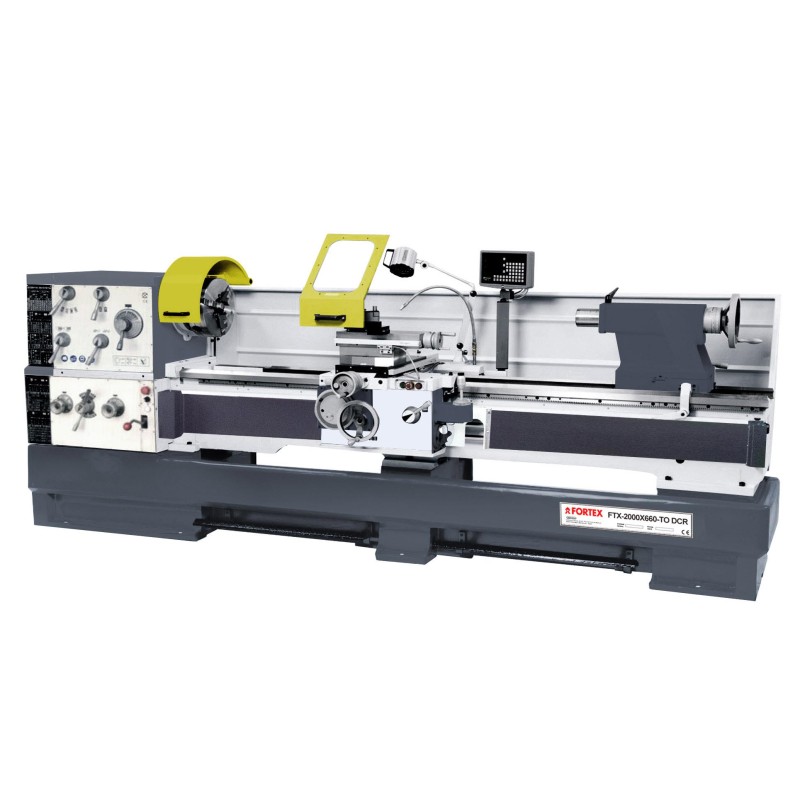

Lathe FTX-2000x660-to DCR 400V / F3 * 10HP-16 Vel.
DESCRIPCIÓN
Lathes to work metals, professional use, robust design with laminated and rectified prismatic guides. Truck guides tempered to HRC43. With a shaft of guide for automatic advances. Longitudinal and cross-cutting fast tour of the intermediate carriage. Stopper microswitch by opening pulley cap or plate protector. Clipping plate protector and turret. Emergency stop Foot brake. Dial Thread Indicator. Race stopper longitudinal carriage stop. Machines manufactured according to EC standards.
DESCARGAR FICHA TÉCNICA
441009100.pdf
Mi Descargar ficha técnica del producto 441009100
* Impuestos y transportes excluidos
| X / Y coordinate display | IF |
|---|---|
| Feed | 400v / f3 |
| Power | 7.5 - 10 Kw-Hp |
| Change speeds | GEARS |
| Diameter on bench | 660 mm. |
| Diameter over neckline | 900 mm. |
| Diameter on car | 440 mm. |
| Bench width | 400 mm. |
| Interior diameter spindle | 105 mm. |
| Distance between points | 2000 mm. |
| Cone | 1:20 |
| Cone counterpoint | Mt5 |
| Diameter counterpoint | 90 mm. |
| Journey | 235 mm. |
| Number of speeds | 16 |
| Range speeds | 25 - 1600 r.p.m. |
| Longitude progress rank | 0.044 - 1.28 mm / rev. |
| Transverse progress rank | 0,022 - 0.74 mm / rev. |
| A. Languid Longitance Intermediate car | - m / min. |
| A.Rapid Transversal Intermediate car | - m / min. |
| Range Metric Steps | 54 Types / 0.45 - 120 mm. |
| Range inch steps | 54 Types / 7/16 - 80 TPI |
| Diametral Steps Range | 42 Types / 7/8 - 160 d.p. |
| Range Modular Steps | 46 Types / 0.25 - 60 m.p. |
| Net / crude weight | 3345 Kg. |
| Dimensions | 3740X1140X1840 mm. |
