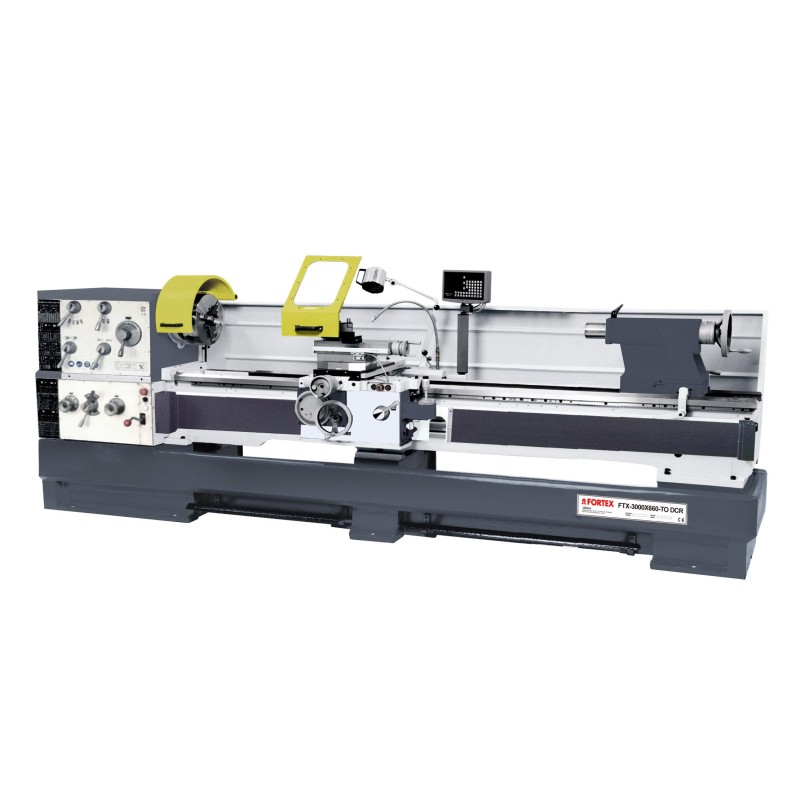

Lathe FTX-3000X660-TO DCR 400V / F3 * 10HP-16 Vel.

Name: Lathe FTX-3000X660-TO DCR 400V / F3 * 10HP-16 Vel.
Brand: FORTEX
SKU: 440999100

Referencia 440999100 Category Lathe Brand FORTEX

Metals, professional use, with robust design with guides

Laminated prismatics, rectified and tempered to HRC43.

Truck guides tempered to HRC43.

With a shaft of guide for automatic advances.

Longitudinal and cross-cutting fast tour of the intermediate carriage.

Stopper microswitch by opening pulley cap or plate protector.

Clipping plate protector and turret.

Emergency stop

Foot brake.

Dial Thread Indicator.

Race stopper longitudinal carriage stop.

Machines manufactured according to EC standards.

440999100.pdf

Mi Descargar ficha técnica del producto 440999100

* Impuestos y transportes excluidos

X / Y coordinate display	IF
Feed	400v / f3
Power	7.5 - 10 Kw-Hp
Change speeds	GEARS
Diameter on bench	660 mm.
Diameter over neckline	900 mm.
Diameter on car	440 mm.
Bench width	400 mm.
Interior diameter spindle	105 mm.
Distance between points	3000 mm.
Cone	1:20
Cone counterpoint	Mt5
Diameter counterpoint	90 mm.
Journey	235 mm.
Number of speeds	16
Range speeds	25 - 1600 r.p.m.
Longitude progress rank	0.044 - 1.28 mm / rev.
Transverse progress rank	0,022 - 0.74 mm / rev.
A. Languid Longitance Intermediate car	- m / min.
A.Rapid Transversal Intermediate car	- m / min.
Range Metric Steps	54 Types / 0.45 - 120 mm.
Range inch steps	54 Types / 7/16 - 80 TPI
Diametral Steps Range	42 Types / 7/8 - 160 d.p.
Range Modular Steps	46 Types / 0.25 - 60 m.p.
Net / crude weight	3710 / 4310 Kg.
Dimensions	4740X1140X1840 mm.
