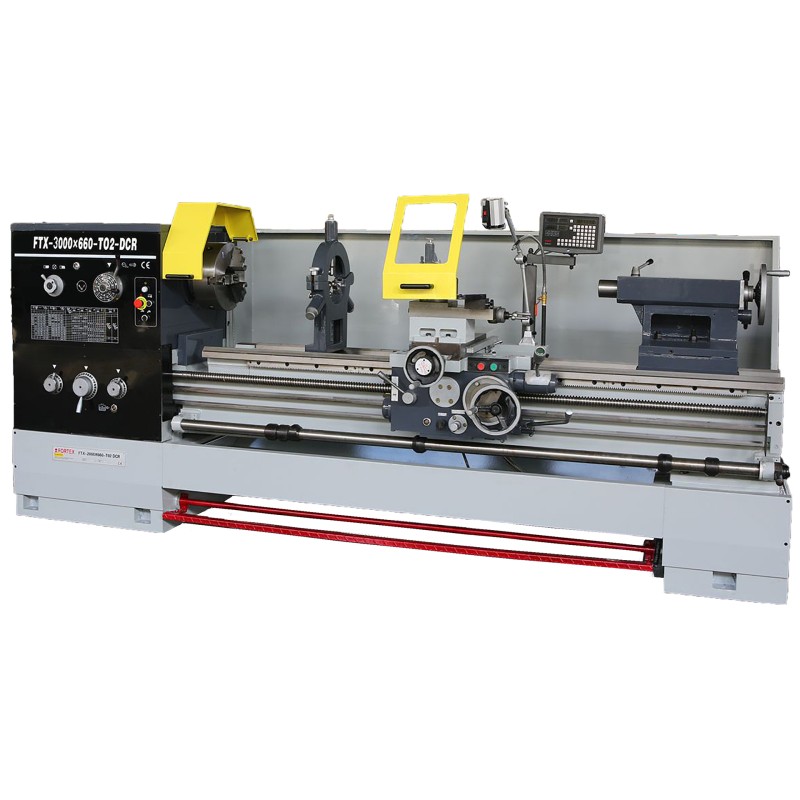

Lathe FTX-3000X660-TO2 DCR 400V / F3 * 10HP-12 Vel.
DESCRIPCIÓN
Lathes to work metals, professional use, robust design with laminated and rectifi prismatic guides. Truck guides tempered to HRC43. With a shaft of guide for automatic advances. Longitudinal and cross-cutting fast tour of the intermediate carriage. Stopper microswitch by opening pulley cap or plate protector. Clipping plate protector and turret. Emergency stop Foot brake. Dial Thread Indicator. Race stopper longitudinal carriage stop. Machines manufactured according to EC standards.
DESCARGAR FICHA TÉCNICA
440999200.pdf
Mi Descargar ficha técnica del producto 440999200
* Impuestos y transportes excluidos
| X / Y coordinate display | IF |
|---|---|
| Feed | 400v / f3 |
| Power | 7.5 - 10 Kw-Hp |
| Change speeds | GEARS |
| Diameter on bench | 660 mm. |
| Diameter over neckline | 870 mm. |
| Diameter on car | 420 mm. |
| Bench width | 405 mm. |
| Interior diameter spindle | 105 mm. |
| Distance between points | 3000 mm. |
| Cone | 113 |
| Cone counterpoint | Mt5 |
| Diameter counterpoint | 75 mm. |
| Journey | 150 mm. |
| Number of speeds | 12 |
| Range speeds | 36 - 1600 r.p.m. |
| Longitude progress rank | 0,063 - 2.52 mm / rev. |
| Transverse progress rank | 0.027 - 1.07 mm / rev. |
| A. Languid Longitance Intermediate car | 4.5 m / min. |
| A.Rapid Transversal Intermediate car | 1.9 m / min. |
| Range Metric Steps | 22 Types / 1 - 14 mm. |
| Range inch steps | 25 Types / 28 - 2 TPI |
| Diametral Steps Range | 24 types / 56 - 4 d.p. |
| Range Modular Steps | 18 Types / 0.5 - 7 m.p. |
| Net / crude weight | 3900/4300 kg. |
| Dimensions | 4500x1100x1650 mm. |
