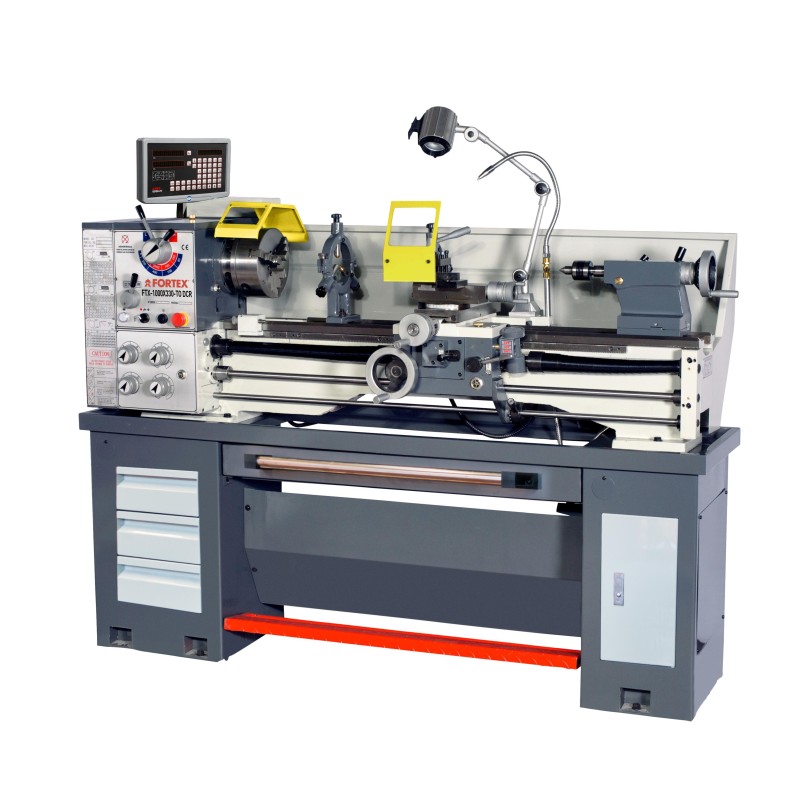

Lathe FTX-1000X330-TO DCR 400V / F3 2HP. + DRO + TCRE
DESCRIPCIÓN
Lathe to work metals, professional use, robust design with temperate and grinded V-guides, with backsplash guard and tray pick up chips, drilling pump, foot brake, automatic gearbox. Hardened bearings and precision gears in the head. Automatic progress of longitudinal and cross carriage. Stopper microswitch by opening pulley cap or plate protector. Clipping plate protector and turret. Emergency stop Dial Thread Indicator. Race stopper longitudinal carriage stop. Machines manufactured according to EC standards.
DESCARGAR FICHA TÉCNICA
441060000.pdf
Mi Descargar ficha técnica del producto 441060000
* Impuestos y transportes excluidos
| X / Y coordinate display | IF |
|---|---|
| Feed | 400v / f3 |
| Power | 1,5 - 2 kW-HP |
| Change speeds | GEARS |
| Diameter on bench | 330 mm. |
| Diameter over neckline | 450 mm. |
| Diameter on car | 198 mm. |
| Bench width | 187 mm. |
| Interior diameter spindle | 51 mm. |
| Distance between points | 1000 mm. |
| Cone | Mt6 |
| Cone counterpoint | Mt3 |
| Diameter counterpoint | 32 mm. |
| Journey | 100 mm. |
| Number of speeds | 18 |
| Range speeds | 70 - 2000 r.p.m. |
| Longitude progress rank | 0,052 - 1.392 mm / rev. |
| Transverse progress rank | 0.09 - 0.253 mm / rev. |
| A. Languid Longitance Intermediate car | - m / min. |
| A.Rapid Transversal Intermediate car | - m / min. |
| Range Metric Steps | 26 types / 0.4 - 7 mm. |
| Range inch steps | 34 types / 4 - 56 TPI |
| Diametral Steps Range | - d.p. |
| Range Modular Steps | - m.p. |
| Net / crude weight | 580/640 kg. |
| Dimensions | 1940x760x1520 mm. |
