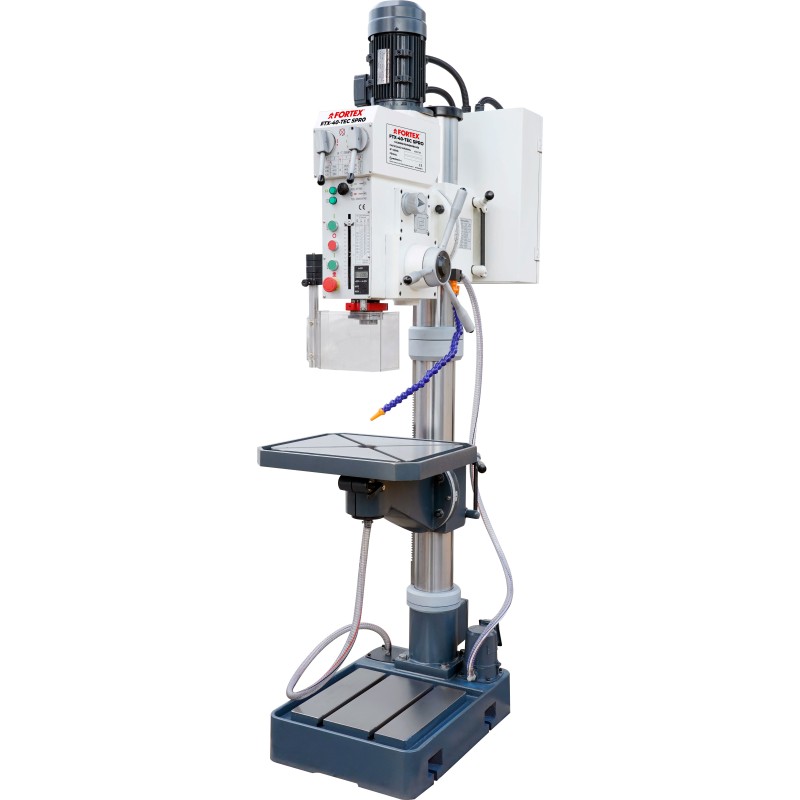

Drill Gears FTX-40-TEC SPRO * 400V / F3
DESCRIPCIÓN
High precision milling drill equipped with silent gearbox and automatic spindle advance. It incorporates threading function, tilt table ± 45 ° and change of speeds by levers. It has a turning inverter, electromagnetic clutch and refrigeration system. Manufactured according to EC standards to ensure optimal safety and performance.
DESCARGAR FICHA TÉCNICA
441537000.pdf
Mi Descargar ficha técnica del producto 441537000
* Impuestos y transportes excluidos
| Feed | 400v / f3 |
|---|---|
| Power | 0.85 / 1,5 - 1,1 / 2 kW-HP |
| Transmission | Gears |
| Number of speeds | 18 |
| Speed | 50 - 1450 m.p.m. |
| Maximum capacity drill | 40 mm. |
| Threading | M24 |
| Distance Caker-column | 350 mm. |
| Cone morse | Mt4 |
| Depth drill | 180 mm. |
| Slot size in T | 2x18, 2x18 mm. |
| Distance Husillo-Base | 1210 mm. |
| Distance spindle-table | 770 mm. |
| Max. work table | 560 mm. |
| Diameter column | 160 mm. |
| Base dimension | 730x500 mm. |
| Table | 560x560 mm. |
| Tilt | 45th |
| Hausyl advance | 0.10 / 0.20 mm./r |
| Refrigeration equipment | IF |
| Total height | - mm. |
| Net / crude weight | 465/550 kg. |
| Dimensions | 2290x630x1090 mm. |
