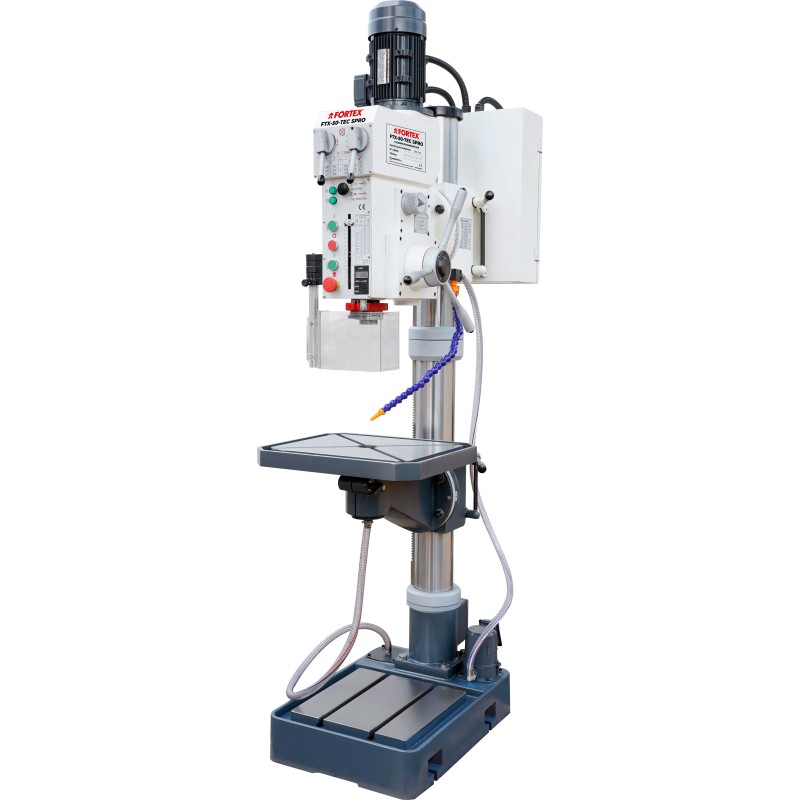

Drill Gears FTX-50-TEC SPRO * 400V / F3
DESCRIPCIÓN
High precision milling drill equipped with silent gearbox and automatic spindle advance. It incorporates threading function, tilt table ± 45 ° and change of speeds by levers. It has a turning inverter, electromagnetic clutch and refrigeration system. Manufactured according to EC standards to ensure optimal safety and performance.
DESCARGAR FICHA TÉCNICA
441513000.pdf
Mi Descargar ficha técnica del producto 441513000
* Impuestos y transportes excluidos
| Feed | 400v / f3 |
|---|---|
| Power | 3 - 4 kW-HP |
| Transmission | Gears |
| Number of speeds | 12 |
| Speed | 52 - 1400 m.p.m. |
| Maximum capacity drill | 50 mm. |
| Threading | M30 |
| Distance Caker-column | 450 mm. |
| Cone morse | Mt4 |
| Depth drill | 240 mm. |
| Slot size in T | 2x14, 2x18 mm. |
| Distance Husillo-Base | 1180 mm. |
| Distance spindle-table | 600 mm. |
| Max. work table | 600 (450-auto) mm. |
| Diameter column | 180 mm. |
| Base dimension | 800x525 mm. |
| Table | 580x460 mm. |
| Tilt | 45th |
| Hausyl advance | 0.1 / 0.2 / 0.3 / 0.4 mm./r |
| Refrigeration equipment | IF |
| Total height | - mm. |
| Net / crude weight | 630/690 kg. |
| Dimensions | 1120x680x2180 mm. |
