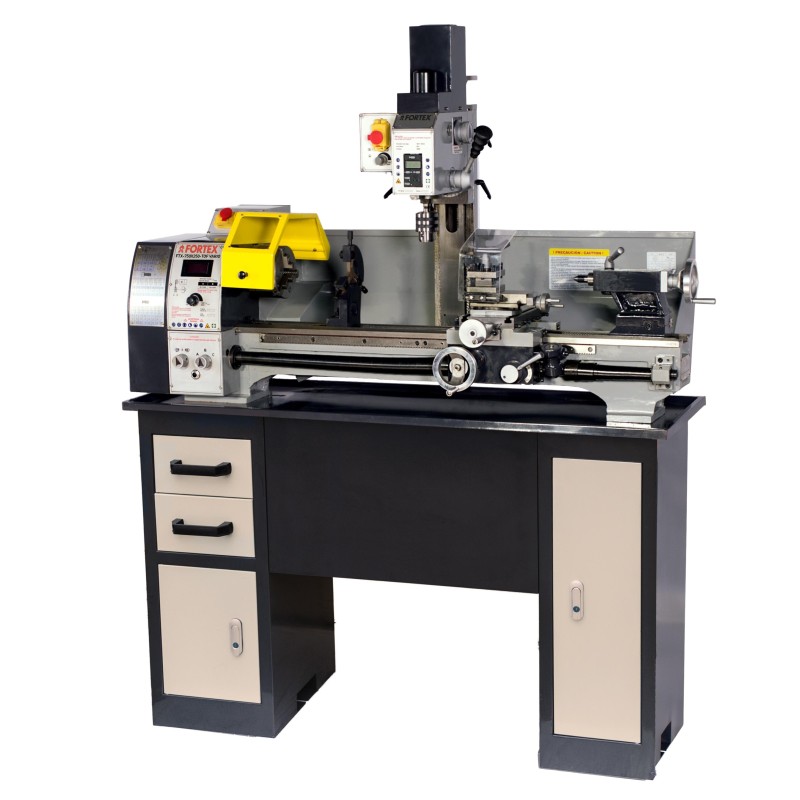

Lasture-Milling FTX-750X250-TOF VARIO 230V / F1 with pedestal
DESCRIPCIÓN
Adjustable and tiltable milling head ± 90º. Variable speed of 50 to 2000 rpm. Double V, tempered and rectified guides. Precision spindle on conical bearings. Adjustable plywoods in the guides. Easy compensation of the counterpoint and cylinder of the marked counterpoint in metric and inches. Reversible threaded bar for threaded on the left. Stopper microswitch by opening pulley cap or plate protector. Clipping plate protector and turret. Emergency stop Dial Thread Indicator. Machines manufactured according to EC standards.
DESCARGAR FICHA TÉCNICA
441107000.pdf
Mi Descargar ficha técnica del producto 441107000
* Impuestos y transportes excluidos
| X / Y coordinate display | NOT |
|---|---|
| Feed | 230v / f1 |
| Power | 1.1 - 1.5 kW-HP |
| Change speeds | VARIABLE |
| Diameter on bench | 250 mm. |
| Diameter over neckline | - mm. |
| Diameter on car | 140 mm. |
| Bench width | 132 mm. |
| Interior diameter spindle | 26 mm. |
| Distance between points | 750 mm. |
| Cone | Mt4 |
| Cone counterpoint | Mt2 |
| Diameter counterpoint | 30 mm. |
| Journey | 70 mm. |
| Number of speeds | 2 - Variable |
| Range speeds | 50 - 2000 r.p.m. |
| Longitude progress rank | 0.07 - 0.40 mm / rev. |
| Transverse progress rank | - mm / rev. |
| A. Languid Longitance Intermediate car | - m / min. |
| A.Rapid Transversal Intermediate car | - m / min. |
| Range Metric Steps | 18 Types / 0.2 - 3.5 mm. |
| Range inch steps | 21 Types / 8 - 56 TPI |
| Diametral Steps Range | - d.p. |
| Range Modular Steps | - m.p. |
| Net / crude weight | 180 kg. |
| Dimensions | 1520x670x930 mm. |
