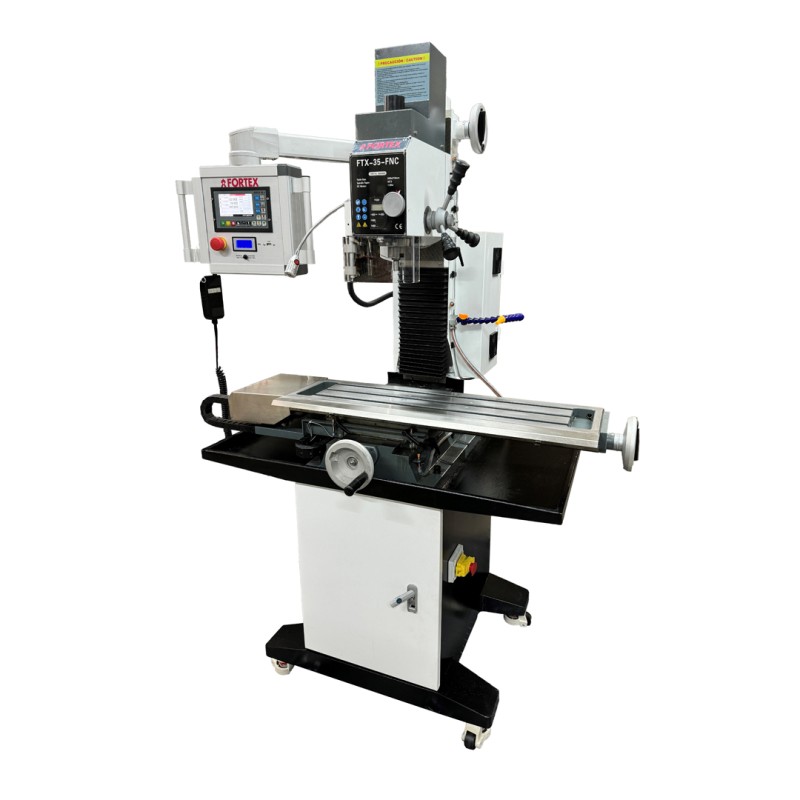

Electronic milling machine FTX-35-FNC + Stand * 230V / F1
DESCRIPCIÓN
Designed to offer Maximum precision, soft operation and absolute control, This machine is ideal for high-demanding work in CNC machining.
All axes equipped with ball spindles, which guarantees soft, accurate displacements and without mechanical game.
Servomotor on all axes, offering a dynamic control, rapid response and greater stability during machining.
Manual central lubrication For all guides, simplifying maintenance and prolonging the useful life of the components.
Compatible with disk U for reading G-code instructions, and Supports standard mpg driver, facilitating precise manual operation.
Specially silent performance, Ideal for environments where low noise emission is required without compromising performance.
Perfect for users looking for Professional performance, repetitive precision and long-term reliability.
DESCARGAR FICHA TÉCNICA
Mi Descargar ficha técnica del producto 441427000
* Impuestos y transportes excluidos
| Feed | 230V-F1 |
|---|---|
| Power | 1,5 - 2 kW-HP |
| Transmission | Gears |
| Number of speeds | Variable |
| Velocidad1 | 100 - 2500 r.p.m. |
| Maximum capacity drill | 32 mm. |
| Tilt of the head | 90º |
| Maximum diameter of vertical milling | 20 mm. |
| Maximum diameter of horizontal milling | 76 mm. |
| Distance Caker-column | 210 mm. |
| Max. Distance Cake-up-table | 450 mm. |
| Cone morse | ISO30 |
| Depth drill | 100 mm. |
| Longitudinal tour (x) | 580 mm. |
| Transversal tour (Y) | 220 mm. |
| Vertical travel (Z) | 350 mm. |
| Slot size in T | 3x14 mm. |
| Table | 840x210 mm. |
| X/Y/Z motor forward | 6 / 8 / 8 N.m |
| Maximum Axle X / Y / Z Axles | 4 / 4 / 4 m/min. |
| Net / crude weight | 285 / 402 Kg. |
| Dimensions packaging | 1300X1000X1890 mm. |
