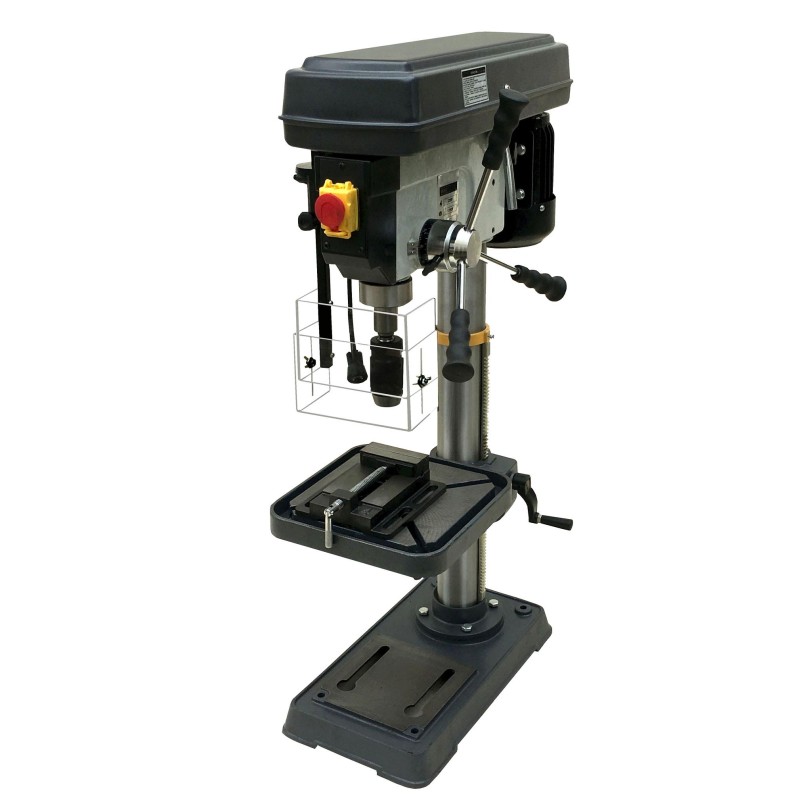

Drill FTX-20TS PRO 230V / F1 * P / BROCAS AUTOM.
DESCRIPCIÓN
Belt transmission. Spindle mounted on ball bearings. Motors and resistant smelting pulleys. Displacement of the table by zipper. Turning the table on the 360º column. R & L model turn inverter. Cover opening safety switch. Machines manufactured according to EC standards.
DESCARGAR FICHA TÉCNICA
441730100.pdf
Mi Descargar ficha técnica del producto 441730100
* Impuestos y transportes excluidos
| Feed | 230v / f1 |
|---|---|
| Power | 1.1 - 1.5 kW-HP |
| Number of speeds | 12 |
| Speed | 280 - 2300 m.p.m. |
| Drill | 20 mm. |
| Distance Caker-column | 215 mm. |
| Distance spindle-table | 480 mm. |
| Distance Husillo-Base | 680 mm. |
| Cone morse | Mt2 |
| Depth drill | 85 mm. |
| Diameter column | 80 mm. |
| Table | 280x280 mm. |
| Total height | 1085 mm. |
| Net / crude weight | 170/202 kg. |
| Dimensions | - mm. |
