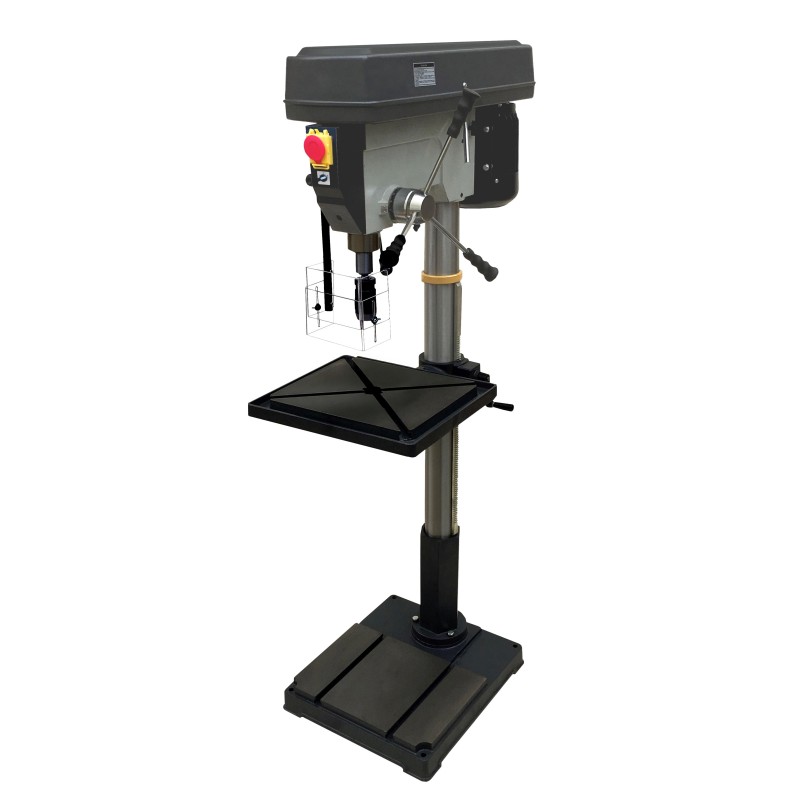

Drill FTX-35TC PRO 230V / F1 * P / AUTOM BROCAS.
DESCRIPTION
Belt transmission. Spindle mounted on ball bearings. Motors and resistant smelting pulleys. Displacement of the table by zipper. Turn the table on the 360º column. Tilt table ± 45º. R & L model turn inverter. Cover opening safety switch. Machines manufactured according to EC standards.
DESCARGAR FICHA TÉCNICA
441615100.pdf
Mi Descargar ficha técnica del producto 441615100
* Taxes and transport excluded
| Feed | 230v / f1 |
|---|---|
| Power | 2,2 - 3 kW-HP |
| Number of speeds | 12 |
| Speed | 210 - 2160 m.p.m. |
| Drill | 32 mm. |
| Distance Caker-column | 275 mm. |
| Distance spindle-table | 680 mm. |
| Distance Husillo-Base | 1220 mm. |
| Cone morse | Mt4 |
| Depth drill | 122 mm. |
| Diameter column | 92 mm. |
| Table | 473x410 mm. |
| Total height | 1780 mm. |
| Net / crude weight | 148 kg. |
| Dimensions | - mm. |
