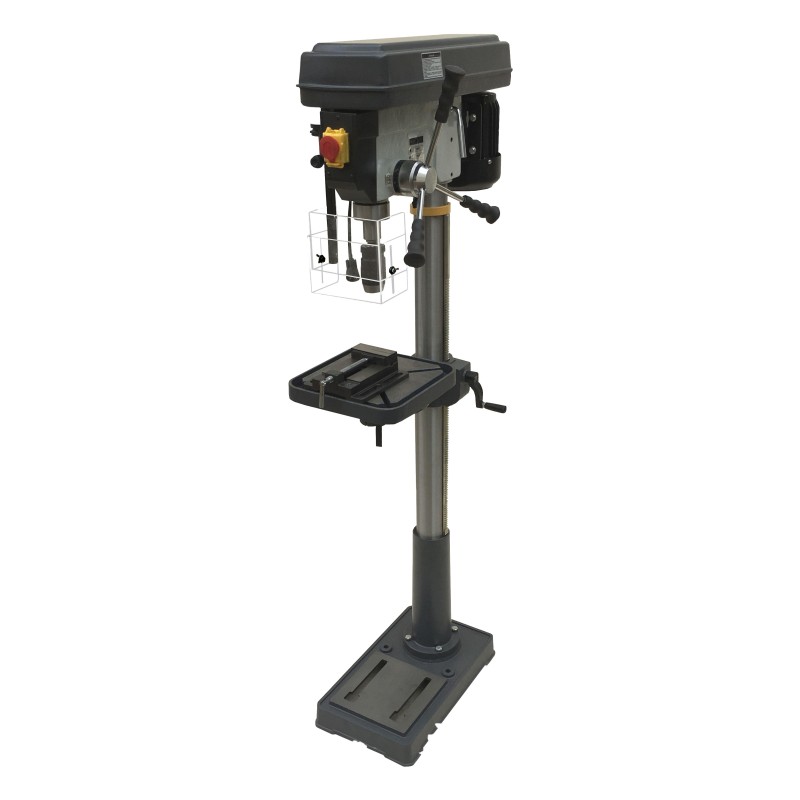

Drill FTX-25TC PRO 230V / F1 * P / AUTOMBROOTS.
DESCRIPTION
Speeds of vessel raps change desktop. Spindle mounted on ball bearings. Motors and resistant smelting pulleys. Displacement of the table by zipper. Turn the table on the 360º column. Tilt table ± 45º. R & L model turn inverter. Cover opening safety switch. Machines manufactured according to EC standards.
DESCARGAR FICHA TÉCNICA
441645100.pdf
Mi Descargar ficha técnica del producto 441645100
* Taxes and transport excluded
| Feed | 230v / f1 |
|---|---|
| Power | 1.1 - 1.5 kW-HP |
| Number of speeds | 12 |
| Speed | 280 - 2300 m.p.m. |
| Drill | 25 mm. |
| Distance Caker-column | 215 mm. |
| Distance spindle-table | 710 mm. |
| Distance Husillo-Base | 1230 mm. |
| Cone morse | Mt3 |
| Depth drill | 85 mm. |
| Diameter column | 80 mm. |
| Table | 290x290 mm. |
| Total height | 1690 mm. |
| Net / crude weight | 180 kg. |
| Dimensions | - mm. |
