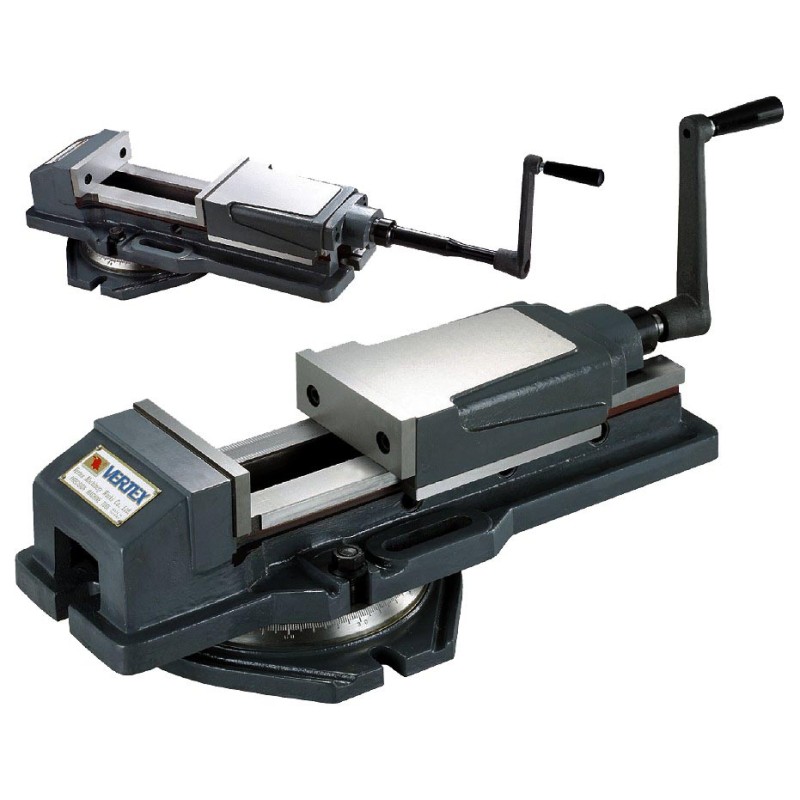

VH-6 * hydraulic jaw - mouth 150x53mm * 300mm opening
DESCRIPCIÓN
Resistant construction for milling machines, drills, etc. Sliding parts have been temperate and husteous husillo for protection against chips and dirt. The rapid hydraulic system guarantees maximum tightening pressure with a minimum of force. Tolerance of 0.02 mm.
DESCARGAR FICHA TÉCNICA
4491002003.pdf
Mi Descargar ficha técnica del producto 4491002003
* Impuestos y transportes excluidos
| TO | 150 mm. |
|---|---|
| B | 53 mm. |
| C Open | 300 mm. |
| TO | 800 |
| D | 620 mm. |
| F | 135 mm. |
| G | 82.5 mm. |
| PM | 117 mm. |
| Strength clamp | 4500 kg |
| Net / crude weight | 73 kg. |
| Maximum opening according to position | X 0-100 / and 95-200 / z 195-300 mm. |
| Dimensions rotating base | at 335 / B 310 / C 36 / D 19 mm. |
