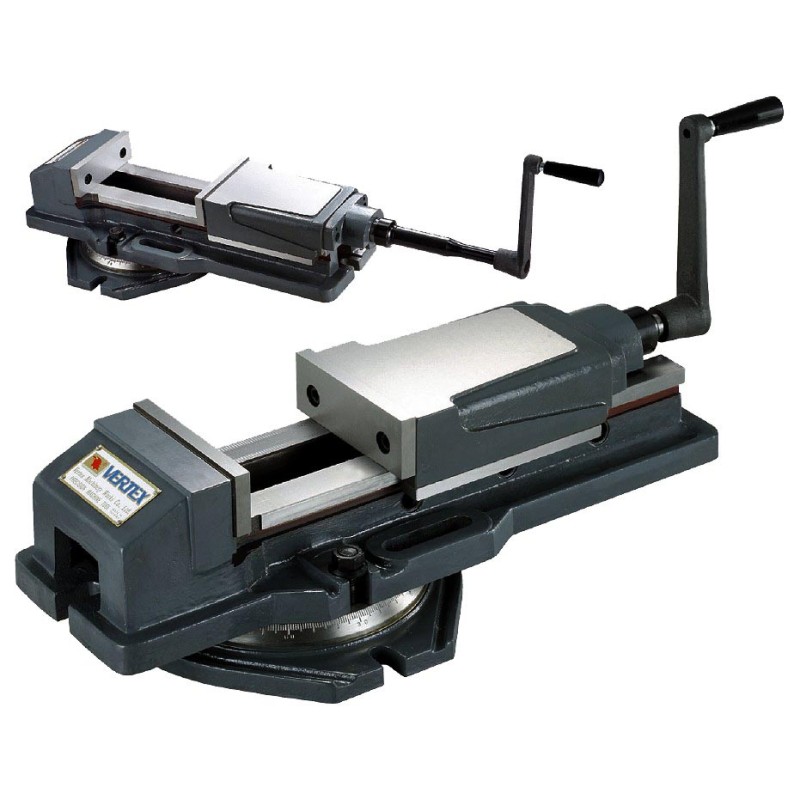

VH-4 * Hydraulic jaw - mouth 105x36mm * 170mm opening.
DESCRIPCIÓN
Resistant construction for milling machines, drills, etc. Sliding parts have been temperate and husteous husillo for protection against chips and dirt. The rapid hydraulic system guarantees maximum tightening pressure with a minimum of force. Tolerance of 0.02 mm.
DESCARGAR FICHA TÉCNICA
4491002001.pdf
Mi Descargar ficha técnica del producto 4491002001
* Impuestos y transportes excluidos
| TO | 105 mm. |
|---|---|
| B | 36 mm. |
| C Open | 170 mm. |
| TO | 525 |
| D | 440 mm. |
| F | 95 mm. |
| G | 58 mm. |
| PM | 95 mm. |
| Strength clamp | 2500 kg |
| Net / crude weight | 31.20 kg. |
| Maximum opening according to position | X 0-60 / and 57-115 / z 110-170 mm. |
| Dimensions rotating base | at 280 / B 210 / C 28 / D 16 mm. |
